Radiolink Crossflight Flight Controller
8,200৳
8,900৳
Ex Tax: 8,200৳
-8 %
| Product price | 8,900৳ |
| Special price | 8,200৳ |
| Stock Status |
In Stock |
| Product code | 1171 |
| Brand |
RunCam |
| Product model | Crossflight |
| Total Reviews |
Based on 0 reviews. - Write a review |
Description
Radiolink Crossflight Flight Controller
Parameters:- Connector: JST GH1.25 Connector
- PWM Output: 10 PWM Output
- Mavlink UART: 2(without CTSRTS)
- USB Port: 1(Type-C)
- GPS UART/I2C Port: 1
- RC In Signal Input: PPM/SBUS
- RSSI Output: Do not support
- OSD Module: OSD Module Integrated
- ESC Protocol: PWM
- DSHOT Protocol: Do not support
- ONESHOT Protocol: Do not support
- Neopix Led: Support
- Gripper Function: Support
- RTK：Support
- USB Voltage: 5V±0.3V
- Servo Voltage: Not applicable
- Operating Temperature: -40~80℃
- Adaptable Models: 3-8 copter/Airplane/Helicopter/Car/Boat
- Dimention: 39.7*39.7*13mm (1.56"*1.56"*0.51")
- Weight: 16.5g(0.58oz), 54g(1.9oz when all the connect wires included)
- Input Voltage: 2-12S
- Input Current: 90A
- Output Voltage: 5.1V
- Output Current(BEC): 2.5A
- Input Current(connect to one ESC only): 20A

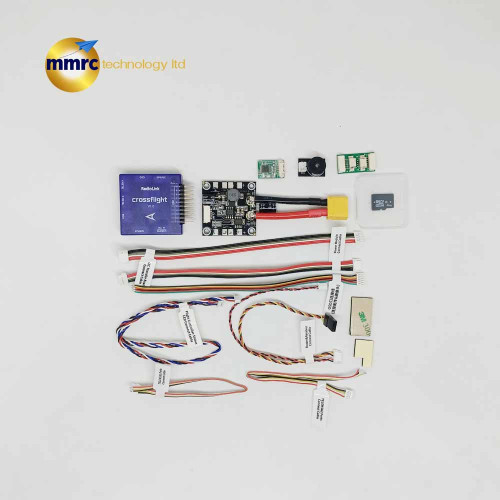

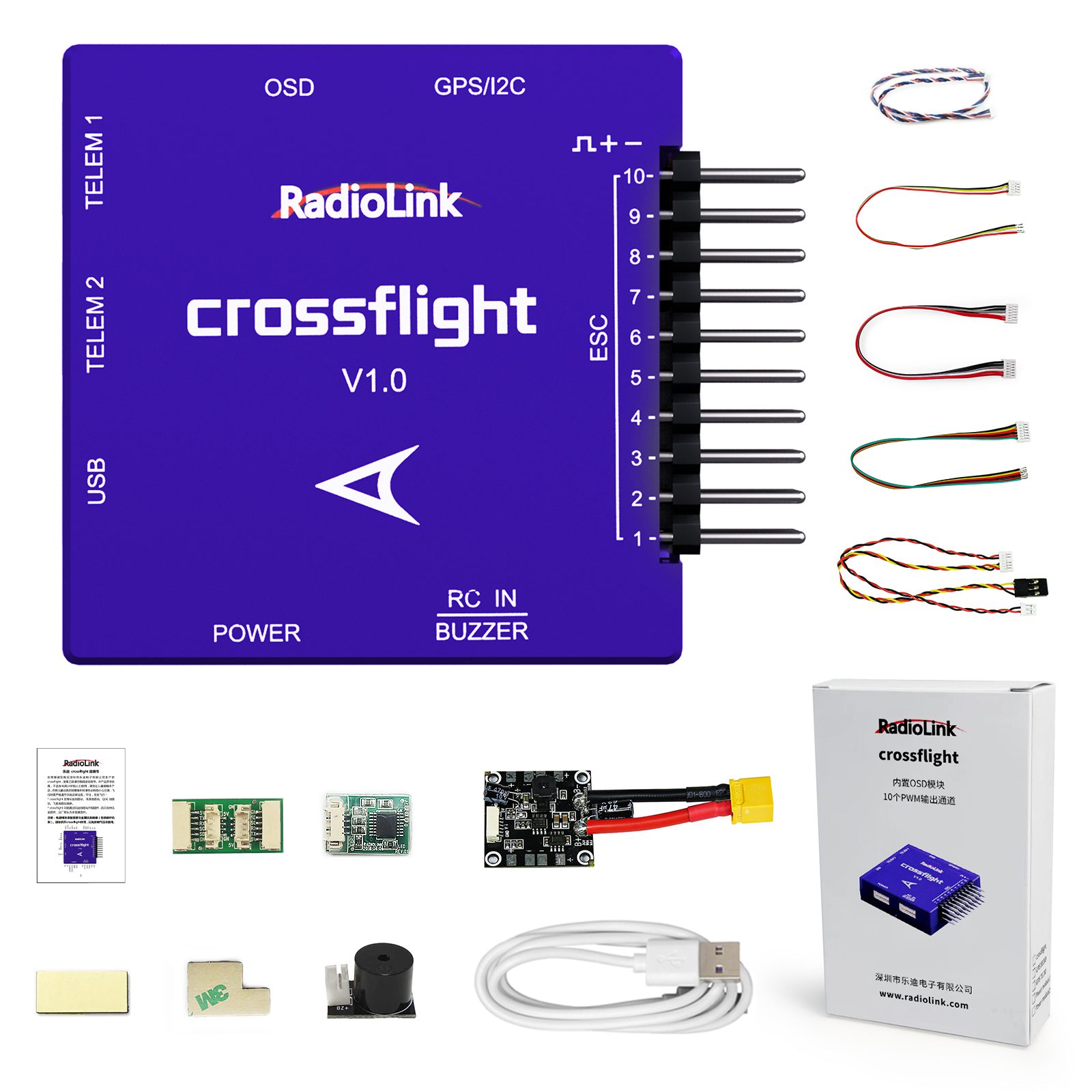

Package List:
