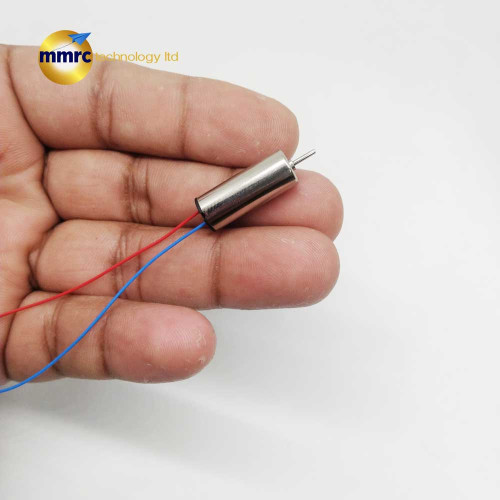

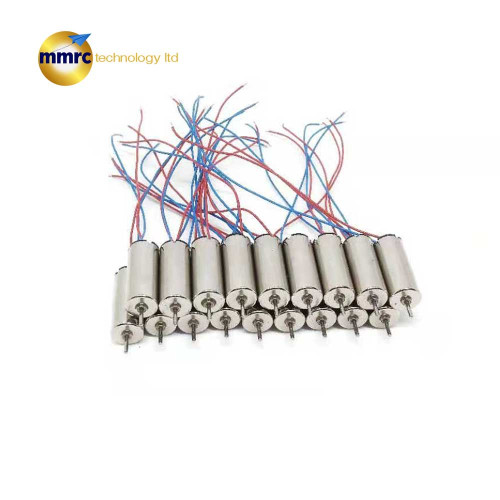

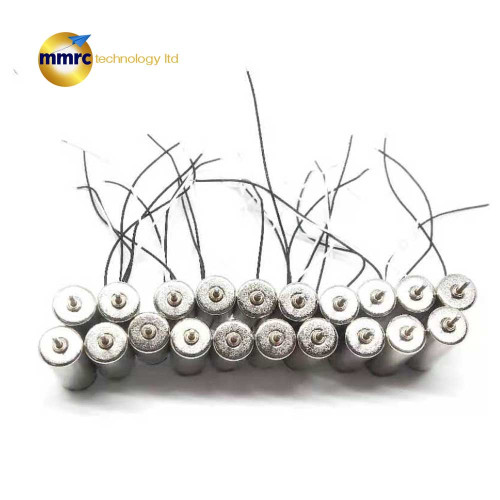

DC 3.7V-7.4V Micro Mini Electric 1020 Coreless Motor High Speed ​​Large Torque NdFeB Magnetic RC Airplane Drone Quadcopter

  Specifications Model: 1020 Output shaft diameter: 1.2mm Output shaft length: 6.6mm Weight: 7.6g Voltage: 3.7V-7.4V Test: Voltage: 3.7V Load speed: 16000 cycles Per minute-load Current: 40mA Stall current:2.3A Voltage: 7.4V Load speed: 32500rpm-load Current: 70mA Stall current:4.5A Note: This original motor comes with a power axis motor above 7.4V aeromodelling. when using voltage 3.7V or DC4.2V, not suitable for use as aeromodelling motor because can not provide large pull FORCE because of low low voltage and low power. V can buy another low voltage 1020 model hollow motor in our shop. This motor can be used with any voltage drop. Can be used as a reduction motor, micro-grind or other electric applications. After the voltage drop because LOW current, easy to generate heat, and the low voltage torque of the magnetic motor of the aircraft model is still relatively strong. .
