| Product price | 22,950৳ |
| Special price | 17,500৳ |
| Product code | 1496 |
| Brand |
Radiolink |
| Product model | T16D |
| Total Reviews |
Based on 0 reviews. - Write a review |
Description

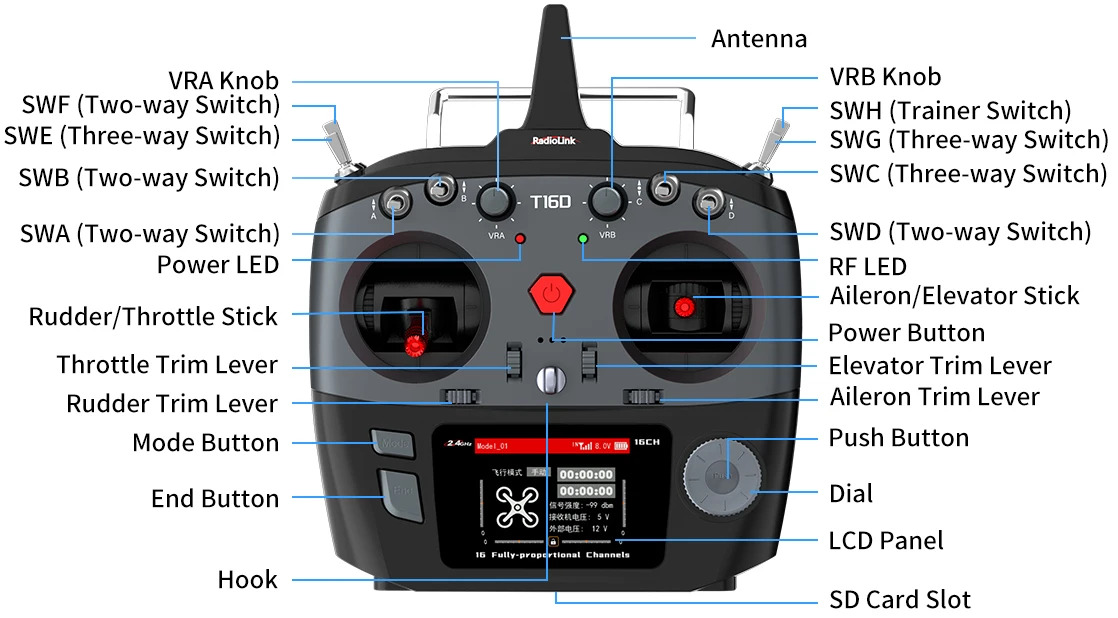

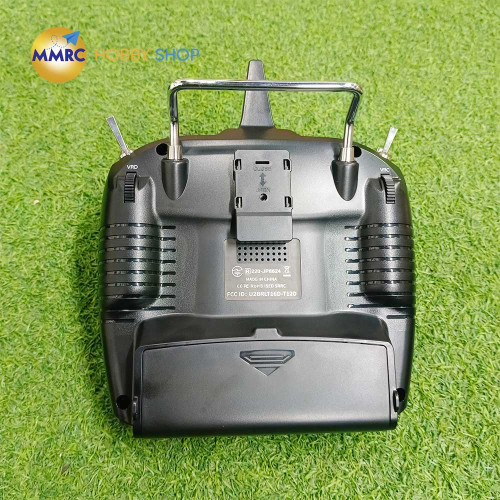

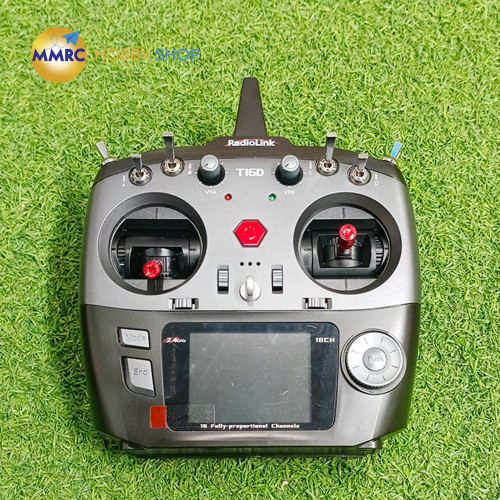

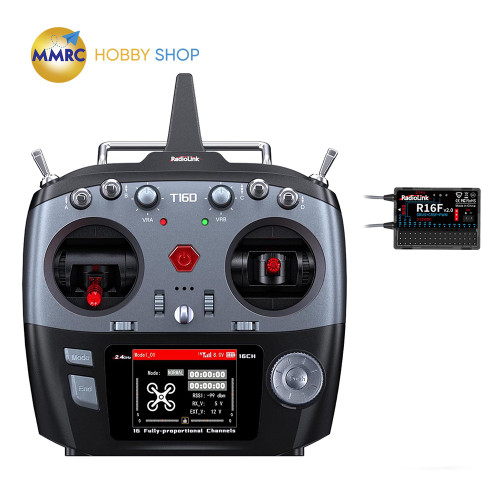

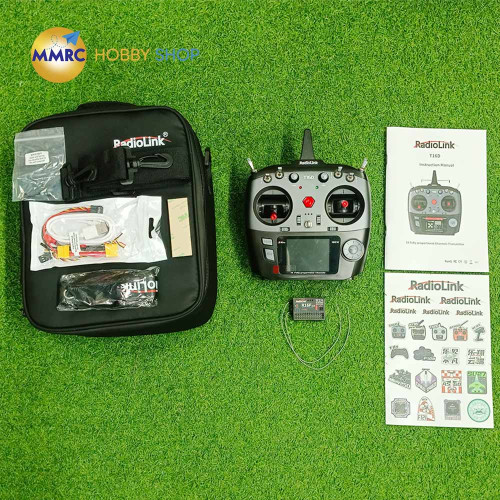

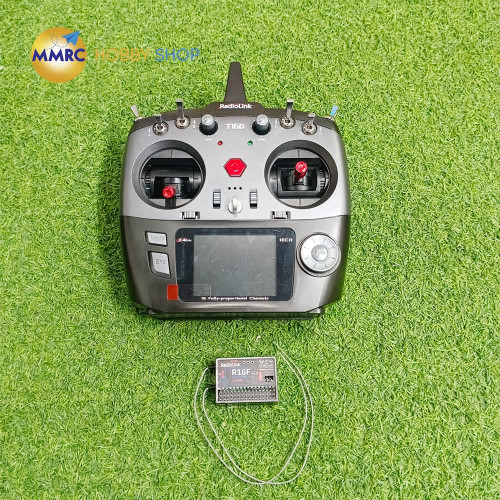

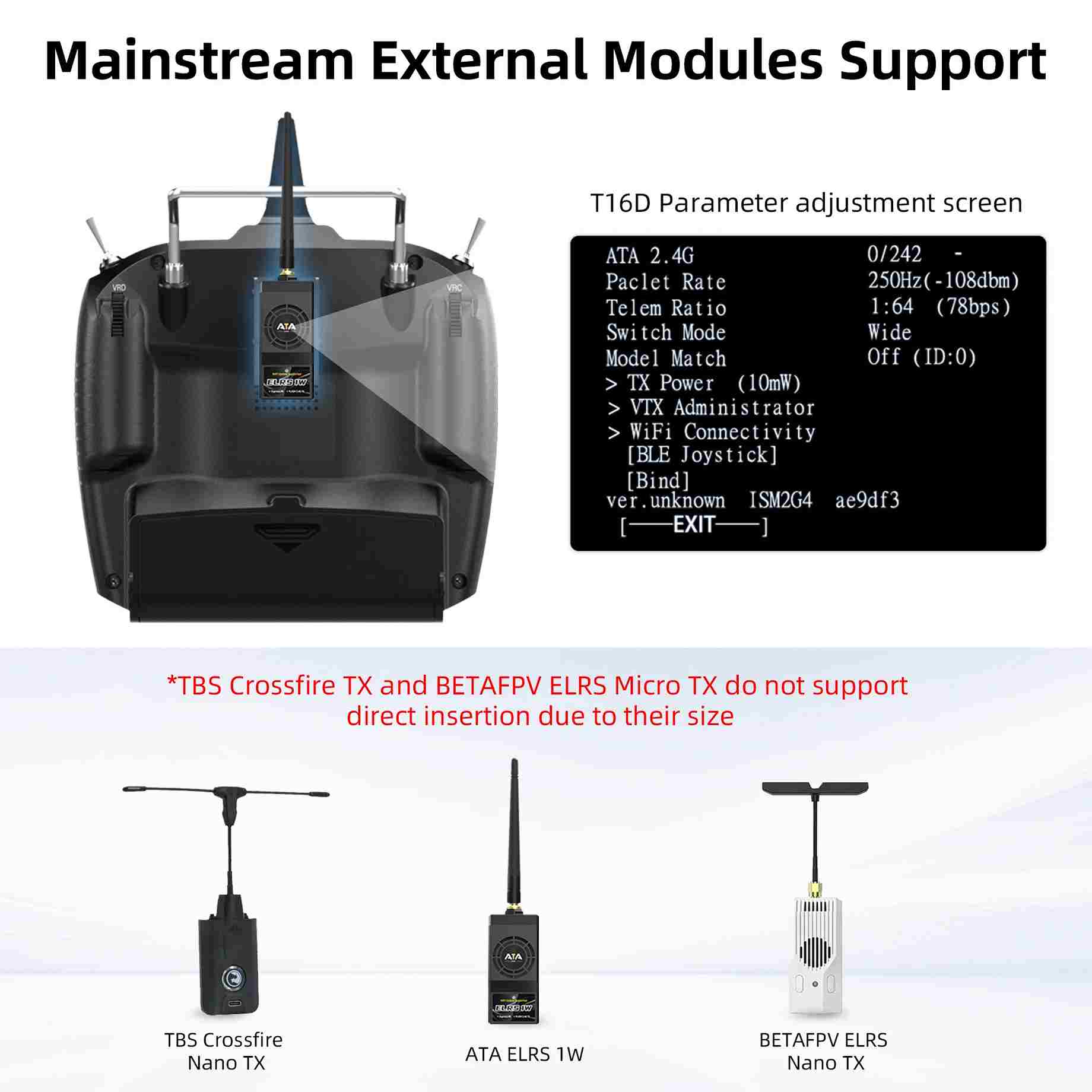

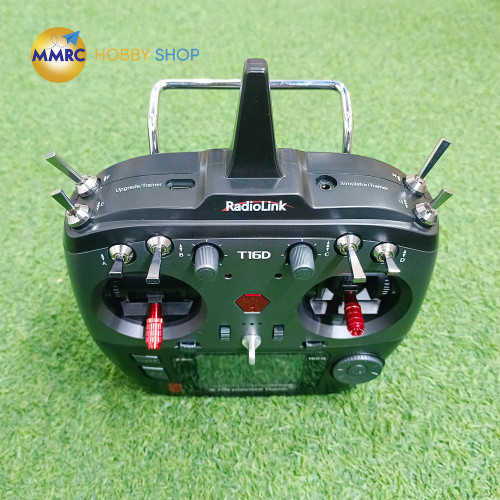

Radiolink T16D 16 Channels Control Range 4-KM 2.4G RC Transmitter and R16F Receiver ELRS Module Support, RC Radio for FPV Drone Airplane Helicopter
T16D Specfications:
Channel: 16 channels
Control Distance: 4000 meters
Signal Output: PWM&SBUS&PPM&CRSF
Operating Systems: freeRTOS+LVGL GUI
Modulation Mode: GFSK
PWM Output Range: 875-2125
Storage Model Quantity: 100
Storage Subsidiary ID Models: 16

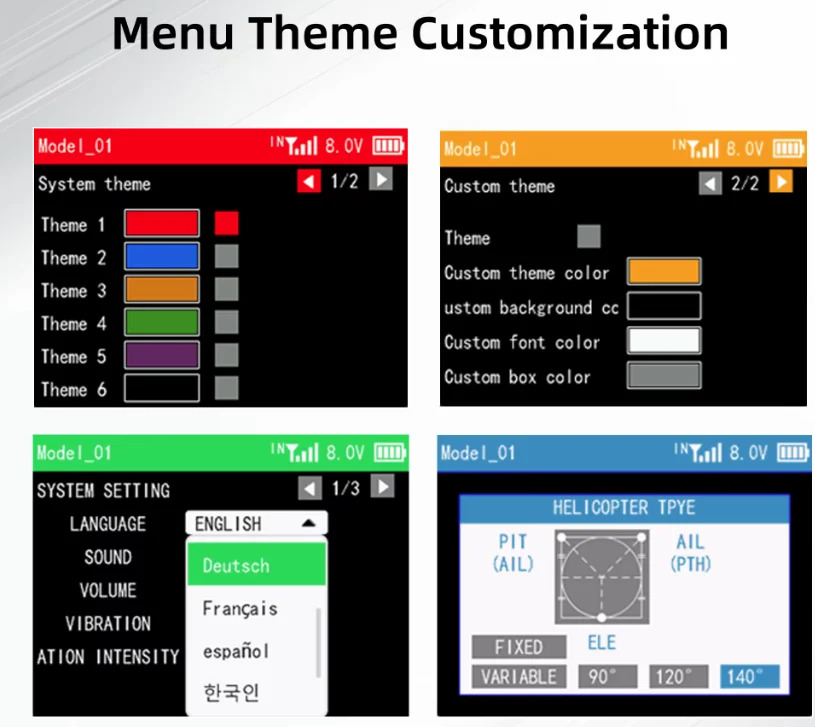

Screen: 2.8 inches 16 colorful screens, 320*240 pixels
Operating Voltage: 7.4-18.0V(8pcs AA battery, a 2$-4s LiPo or 18650 Lithium battery)
Type-C Port Input Voltage: 5V(T16D also can powered by computer or mobile power bank via Type-C cable)
Type-C Port Input Current: 500mA
Type-C Port Output Voltage: 4.6V-5.0V
Type-C Port Output current: Maximum 1A
Operating Current: 100mA(±10mA)@8.4VDC
Control Distance:
① FHSS: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
② CRSF: Depends on the RX and TX of the long-range module
Adaptable Models: Rotary Wing/Fixed-wing/Glider/Multicopter/Car/Boat/Robot
Dimension:174.3*206.9*106.9mm(6.86"*8.15"*4.21")
Weight: 558g(19.68oz)

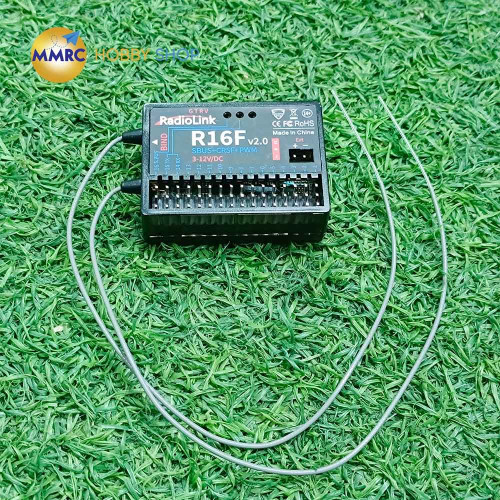

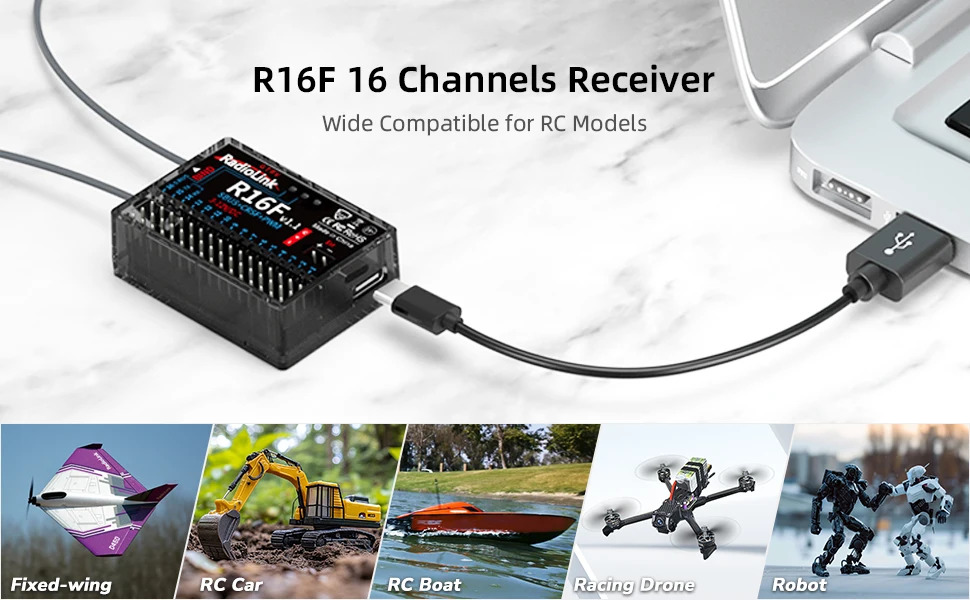

R16F Specfications
Antenna Length: 205mm (8.07”)
Dimension:35.6*25*13.6(1.4"*0.98"*0.54")
Weight: 17g (0.6oz)
Operating Voltage: 3-12V
Operating Current: 50±10mA@5V
Signal Output: SBUS+CRSF+PWM
EXT Battery Input: 1S-14S
Compatible transmitter: T16D/T12D/T8FB/T8S/RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS
Control Distance: 4000 meters in the air(Maximum range is tested in an unobstructed area free of interference)
