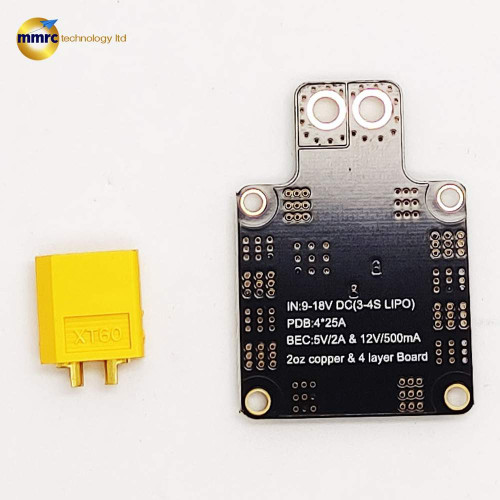

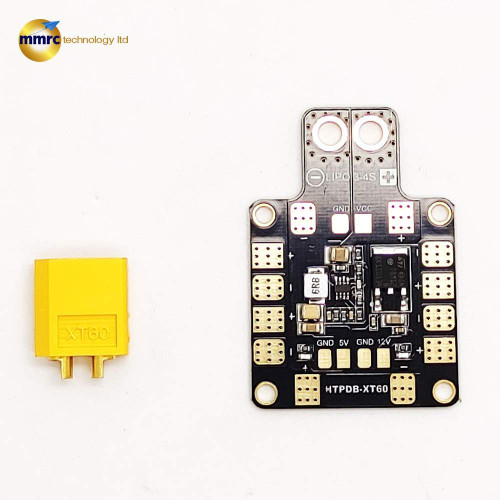

PDB with XT60 , Power Distribution Board , 6 ESC Output with 5V and 12V BEC

PDB with XT60 , Power Distribution Board , 6 ESC Output with 5V and 12V BEC
380৳
Ex Tax: 380৳
PDB with XT60 , Power Distribution Board , 6 ESC Output with 5V and 12V BEC
PDB with XT60 , Power Distribution Board , 6 ESC Output with 5V and 12V BEC
PDB with XT60 , Power Distribution Board , 6 ESC Output with 5V and 12V BEC
PDB with XT60 , Power Distribution Board , 6 ESC Output with 5V and 12V BEC
Power Distribution Board Specification
Product price
380৳
Stock Status
 In Stock
Product code
702
Brand
Product model Power Distribution Board
Total Reviews
 Based on 0 reviews. - Write a review

Review

Write a review

Note: HTML is not translated!
Bad Good

Description

'-Input voltage range (3S-4S LiPo operation): 9 – 18V DC -Regulated 5V and 12V outputs -LED power indicators (5V & 12V outputs) -6 ESC outputs & 1 pair VCC/GND pads ESC outputs: -Continuous current: 25A*4 or 15A*6 -Peak current (10 seconds/minute): 30A*4 or 20A*6 BEC 5V output: -Designed for RC Receivers, Flight controllers, OSD, and Servos. -DC/DC synchronous buck regulator. -Voltage: 5.0 +/- 0.1VDC -Continuous current: 2 Amps (Max.2.5A 10s/minute) -Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) -Short-circuit tolerant (5 seconds/minute) BEC 12V output: -Designed for Video TX or FPV camera with linear regulator. -The battery should be 4S LiPo (13~18V DC) – Voltage: 12.0 +/- 0.3VDC -Continuous current: 500mA (Max.0.8A 5s/minute) -Short-circuit tolerant (2 seconds/minute) BEC 12V @ 3S LiPo -Output voltage= 3S LiPo voltage -1V 2oz copper, 4-layers &1.6mm PCB. Built-in XT60 Socket Total 6 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators & Short circuit tolerant
Tags: 6 ESC Output with 5V and 12V BEC , PDB with XT60 , Power Distribution Board
//
