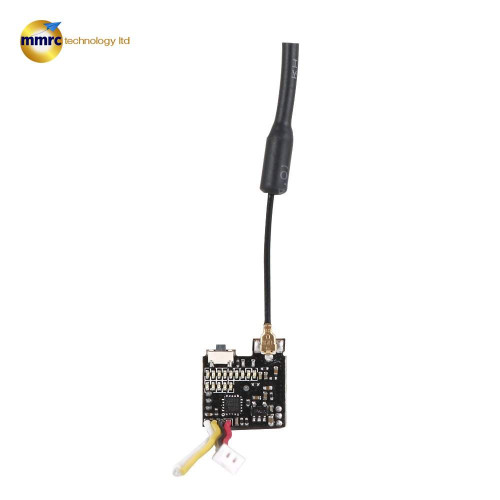

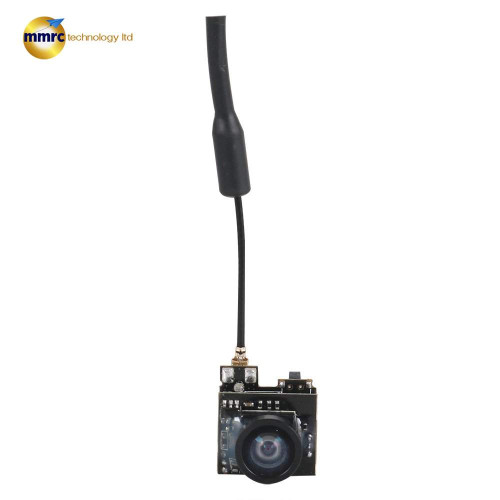

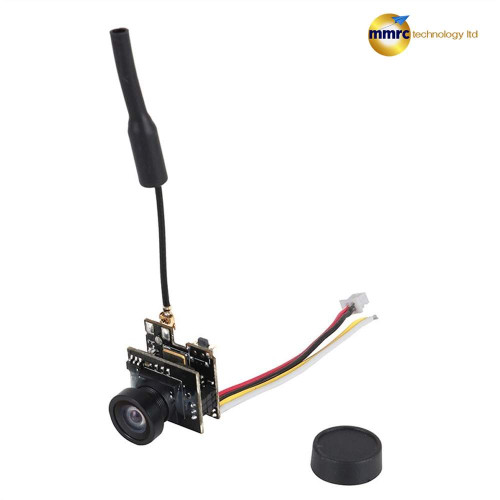

LST-S2+ 5.8G 25MW 40CH 800TVL Transmitter FPV AIO Micro Camera with OSD Mini RC Racing Drone Quadcopter
1,450৳
Ex Tax: 1,450৳
Out Of Stock
| Product price | 1,450৳ |
| Product code | 669 |
| Brand |
|
| Product model | LST-S2+ 5.8G |
| Total Reviews |
Based on 0 reviews. - Write a review |
Review
Description
Specifications:
Sensor: 1/4 “CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Video Transmitter
Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz
Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
Body
Weight: 3.6g
Size: 18x16x16mm (without antenna)
Feature:
AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five bands 40 channels with Race band
Package Included:
1 X S2+ AIO FPV Camera
1 Xwire
1 X User Manual
