Radiolink GPS TS100 V2.0
3,600৳
3,900৳
Ex Tax: 3,600৳
-8 %
Out Of Stock
| Product price | 3,900৳ |
| Special price | 3,600৳ |
| Product code | 1180 |
| Brand |
Radiolink |
| Product model | TS100 V2.0 |
| Total Reviews |
Based on 0 reviews. - Write a review |
Description

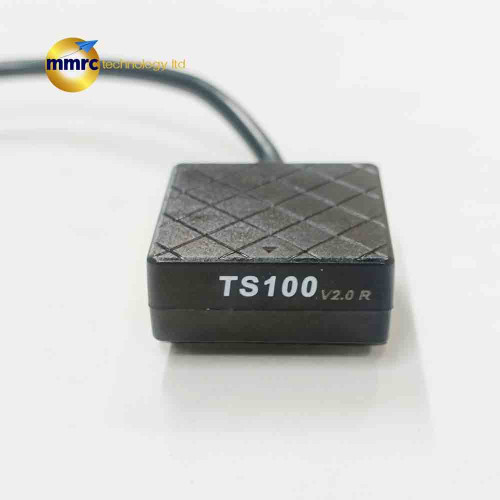

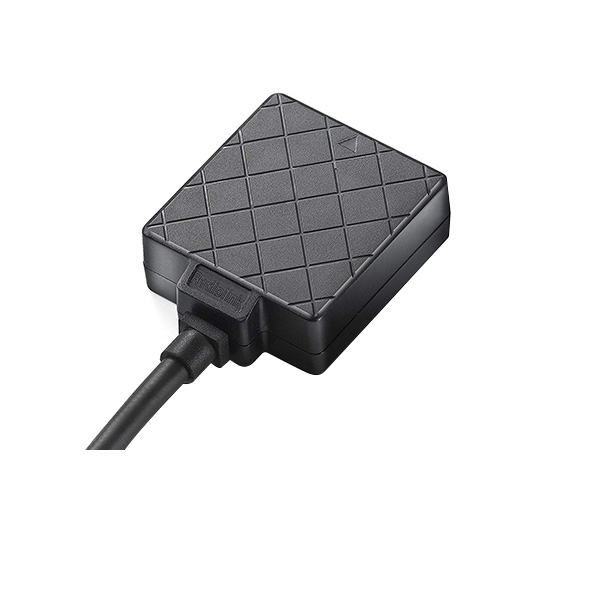

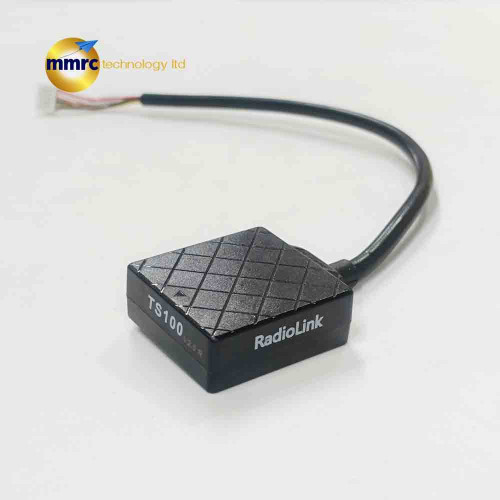

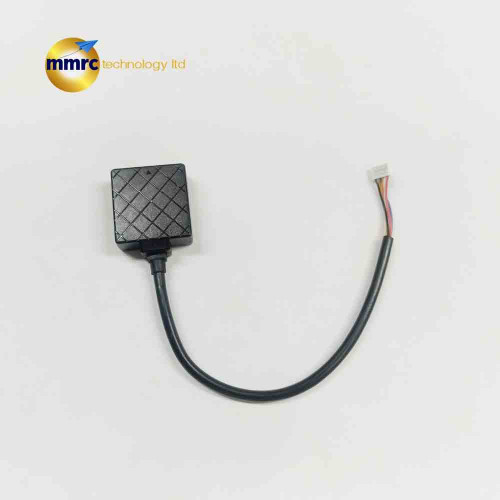

Radiolink GPS TS100 V2.0
Radiolink TS100 V2.0 M10N GPS for Crossflight Mini Pix Pixhawk F4 Flight Controller Quadcopter Helicopter Airplane Drone
Excellent Performance
The pre-LNA low-loss circuit design that exactly matches the ceramic chip antennas has enhanced the capability to capture extremely weak signals even though interfered with by an ideal filter.
Optimal circuit layout ensures TS100 v2.0 can seize very weak signals and input interference is effectively suppressed at the same time.
50 centimeters positioning accuracy, positioning 20 satellites in 6 seconds at open ground, and station-keeping capability even at the valley bottom.
Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz.
BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.
Protocol: Default NMEA
But, when connecting the TS100 v2.0 to the flight controller, it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the TS100 v2.0 to the flight controller, when the TS100 v2.0 disconnects with the flight controller, the protocol will turn back to the default NMEA.
Baud rate: 38.4K
Voltage: 5±5%VDC
Current: 50-100mA
Top Configuration
GPS decoder chip: Radiolink TS100, with Ublox M10050, is much better than a single GNSS 7N.
Built-in high-precision electronic compass IST8310 (I2C port).
Antenna: 2.5dbI high gain and selectivity ceramic chip antennas.
Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.
-
TS100 v2.0*1
-
Packing Bag*1
