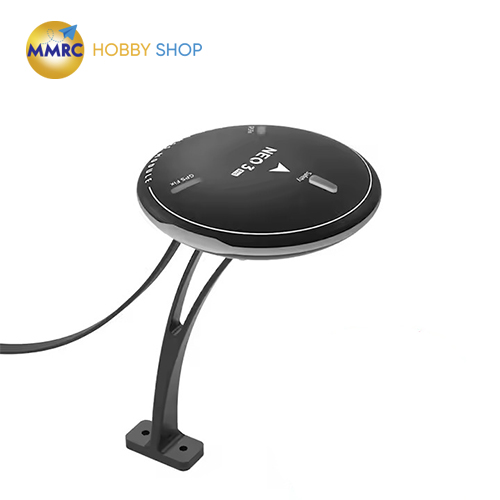

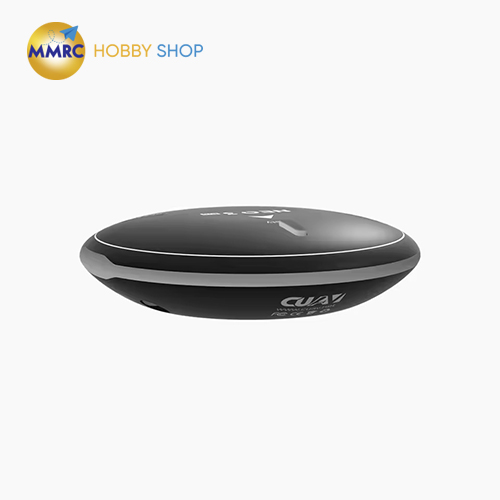

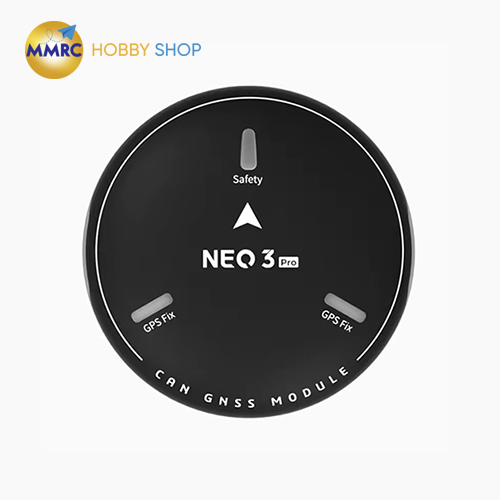

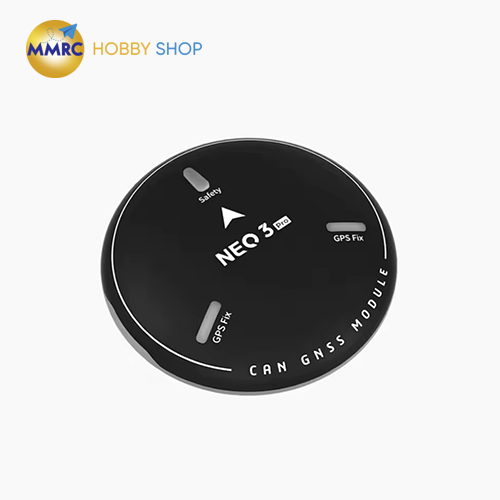

CUAV NEO 3 Pro GPS Module
0৳
Ex Tax: 0৳
Pre-Order
| Product price | 0৳ |
| Product code | 1216 |
| Brand |
|
| Product model | CUAV NEO 3 Pro |
| Total Reviews |
Based on 0 reviews. - Write a review |
Description

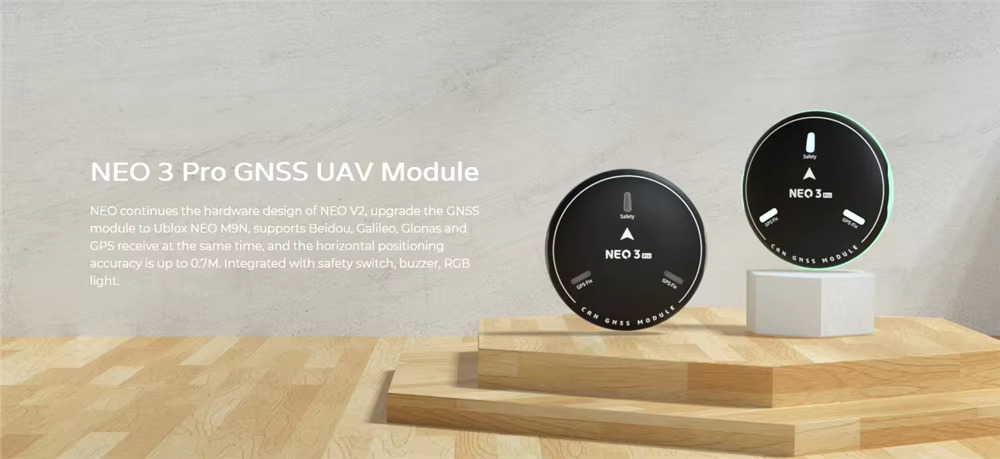

CUAV NEO 3 Pro GPS Module | GNSS U-BLOX M9N CAN BUS
Product features

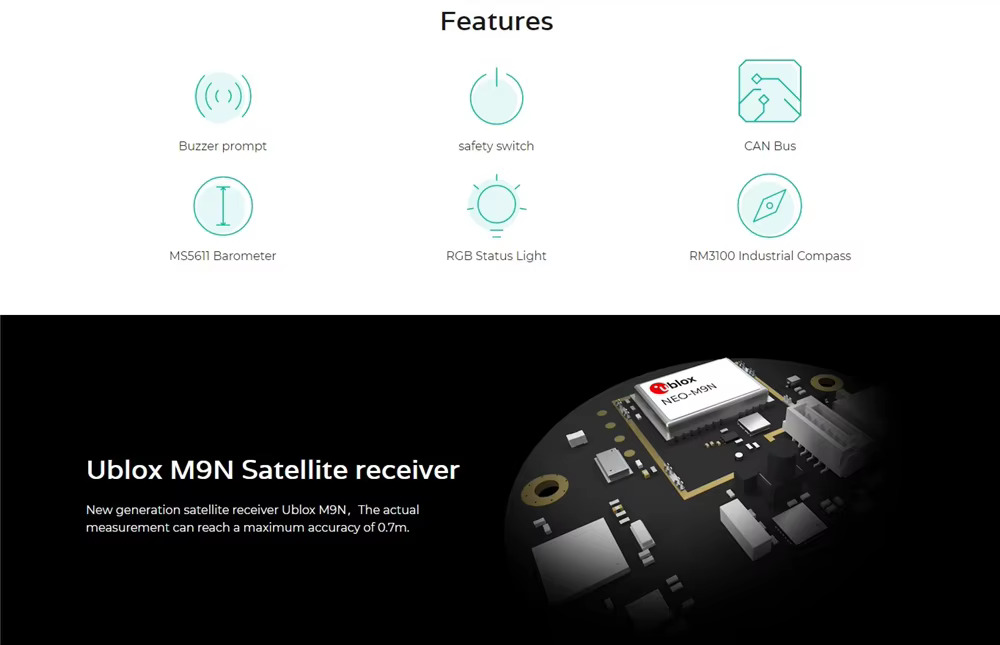

- Integrated Ublox latest generation GNSS module (NEO-M9N)
- Support the concurrency of four mainstream satellite systems to adapt to more complex environments
- Dedicated antenna supporting four major satellite systems
- UAVCAN standard protocol, high real-time, strong anti-interference

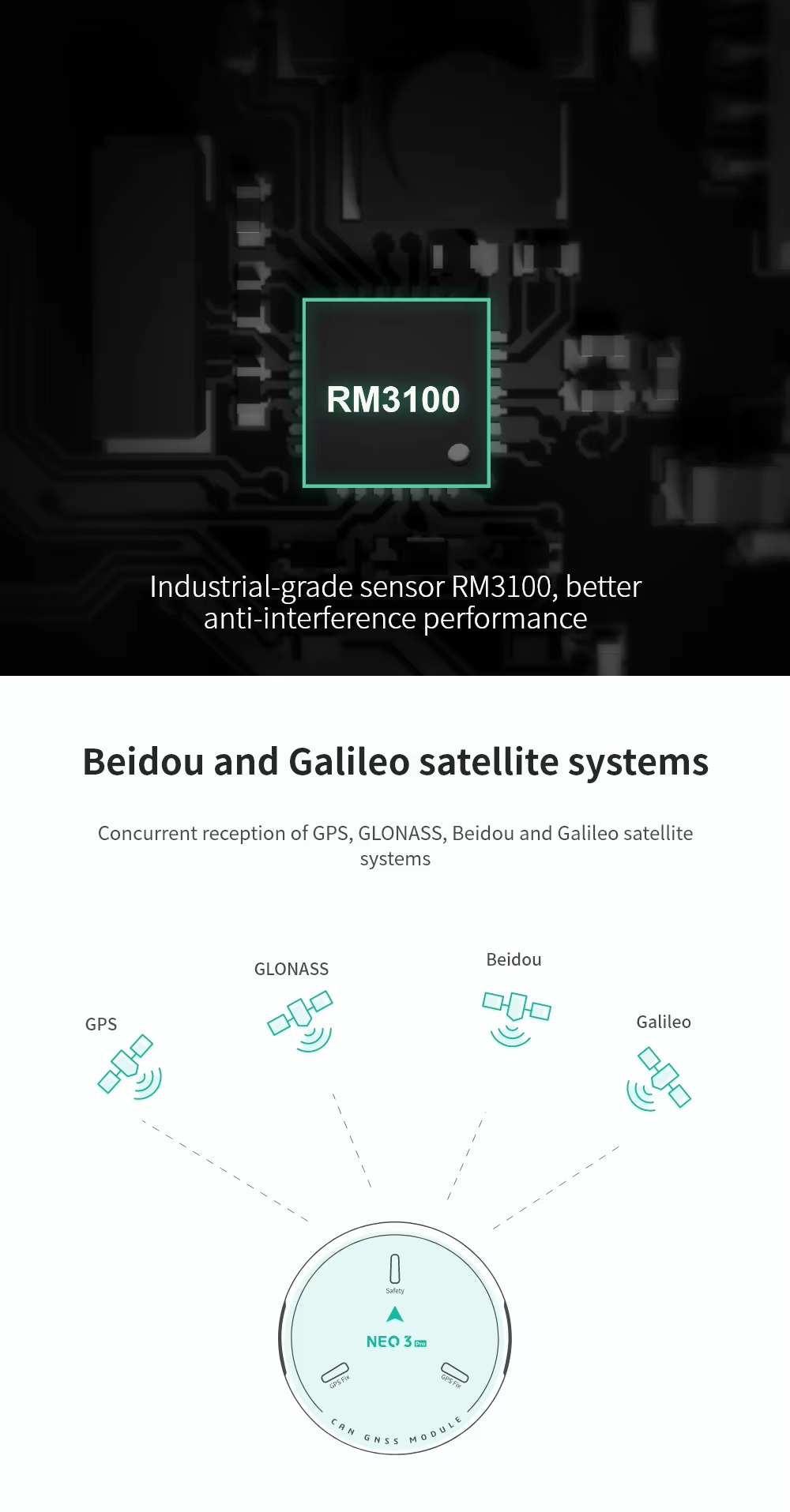

- Industrial grade sensor (RM3100), better anti-interference performance
- High-performance processing unit STM32F412
- Internal high-precision barometer to meet the needs of different application scenarios
- Open source program, support custom program

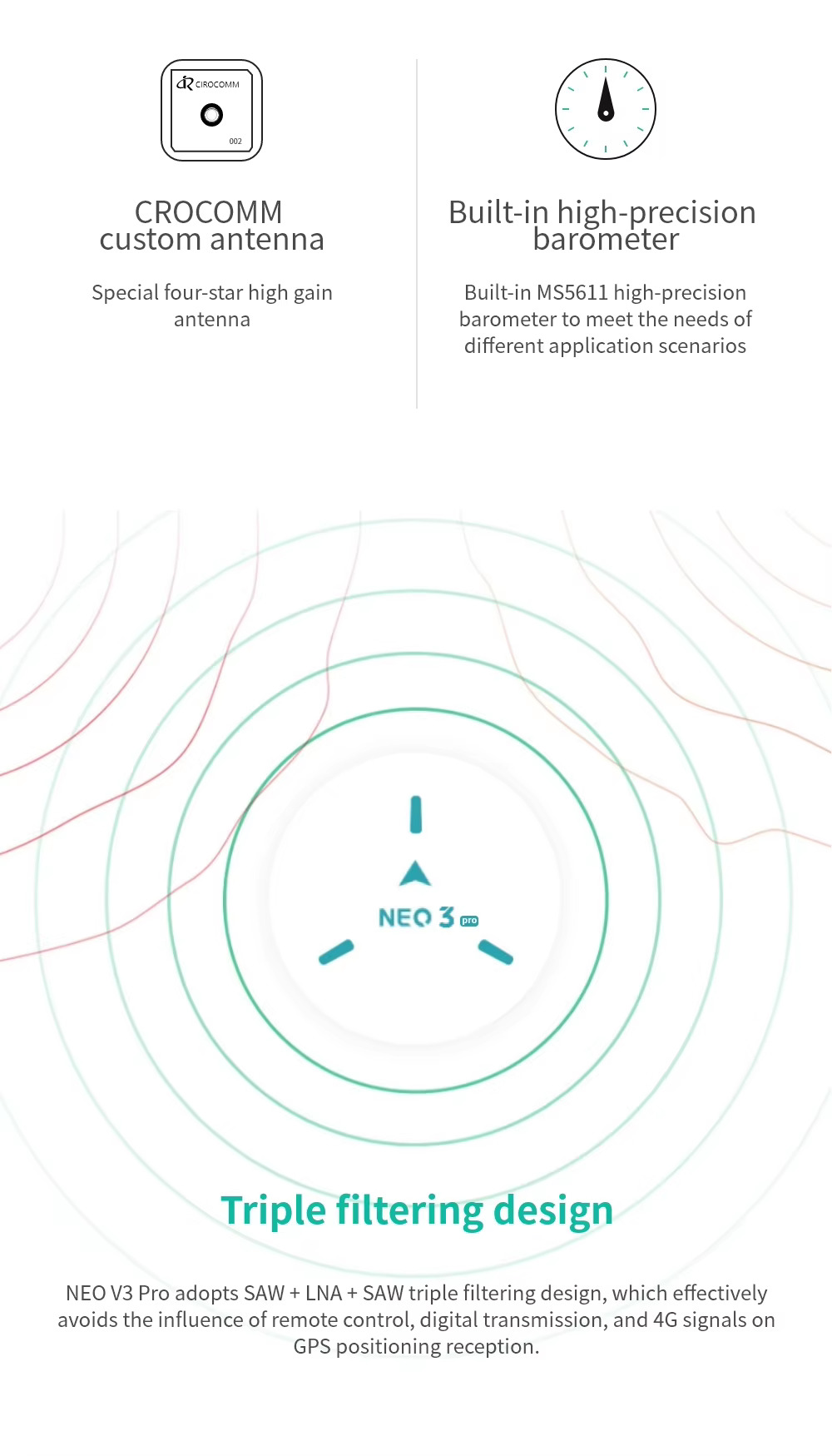

- Adopting SAW+LNA+SAW double filter design, effectively avoid the influence of remote control, data transmission, 4G signal on GPS positioning reception.

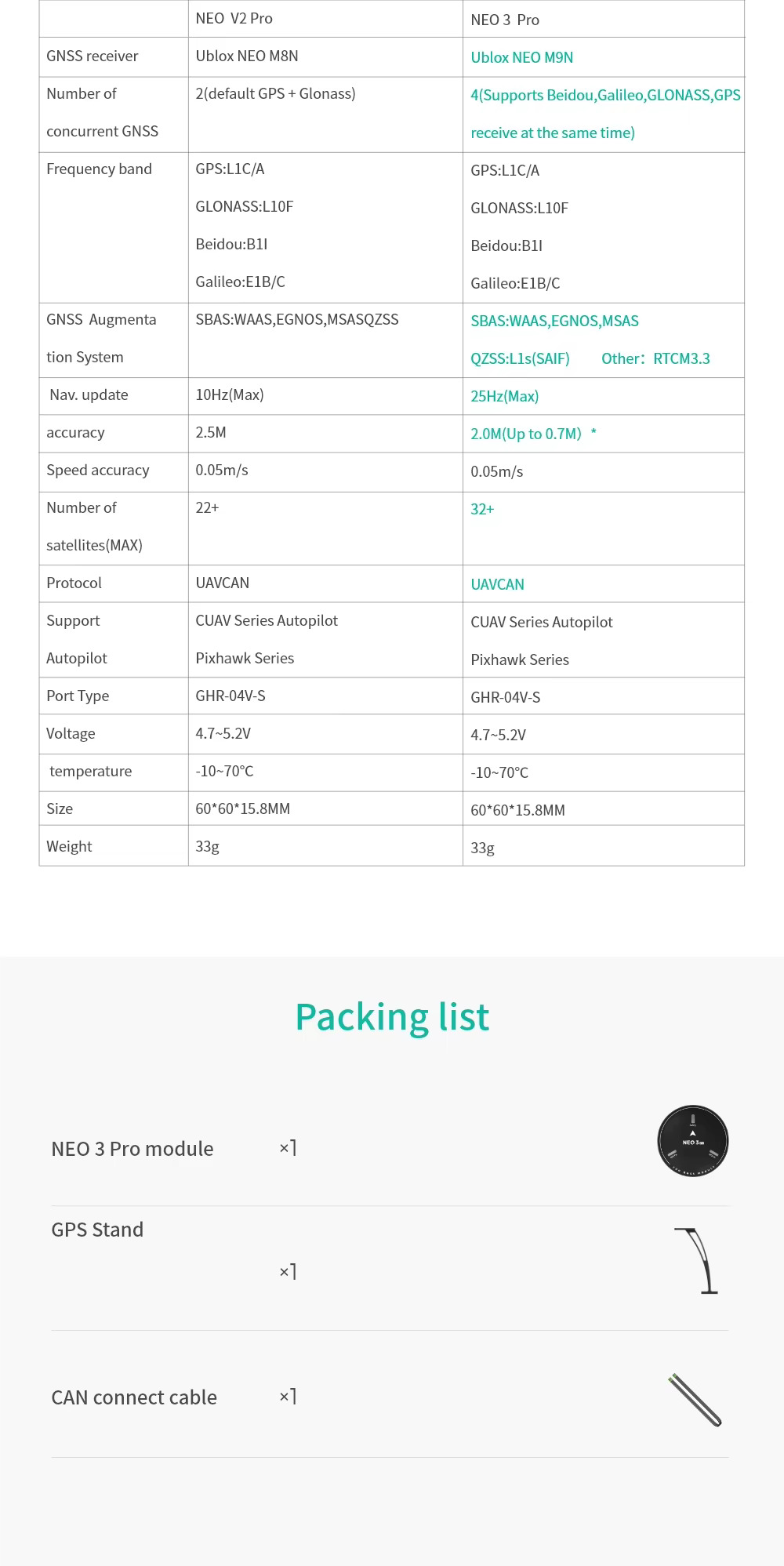

Key data
| Annotate | |
|---|---|
| Processor | STM32F412 |
| Compass | RM3100 |
| Barometer | MS5611 |
| GNSS receiver | UBLOX NEO M9N |
| RGB drive | NCP5623C |
| Buzzer | Passive buzzer |
| Safety switch | Physical button |
| GNSS | Beidou、Galileo、 GLONASS、 GPS |
| GNSS Augmentation System | SBAS:WAAS,EGNOS,MSAS QZSS:L1s(SAIF) other：RTCM3.3 |
| Number of concurrent GNSS | 4 |
| Frequency band | GPS:L1C/A GLONASS:L10F Beidou:B1I Galileo:E1B/C |
| Horizontal accuracy | 2.0M |
| Speed accuracy | 0.05M/S |
| Nav. update rate | 25Hz(Max) |
| Acquisition | Cold start：24S Hot start：2S Aided start:2s |
| Number of satellites(MAX) | 32+ |
| Sensitivity | Tracking and nav-167dBm Cold start Hot star-148dBm Reacquisition -160dBm |
| Protocol | UAVCAN |
| Port TYpe | GHR-04V-S |
| Supported flight controller | CUAV series, Pixahwk series |
| Wave filtering | SAW+LNA+SAW |
| Anti-Electromagnetic/radio frequency interference | EMI+RFI |
| Upgrade firmware | support |
| Support Flight control type | Ardupilot/PX4 |
| Input voltage | 5V |
| Operating temperature | -10~70℃ |

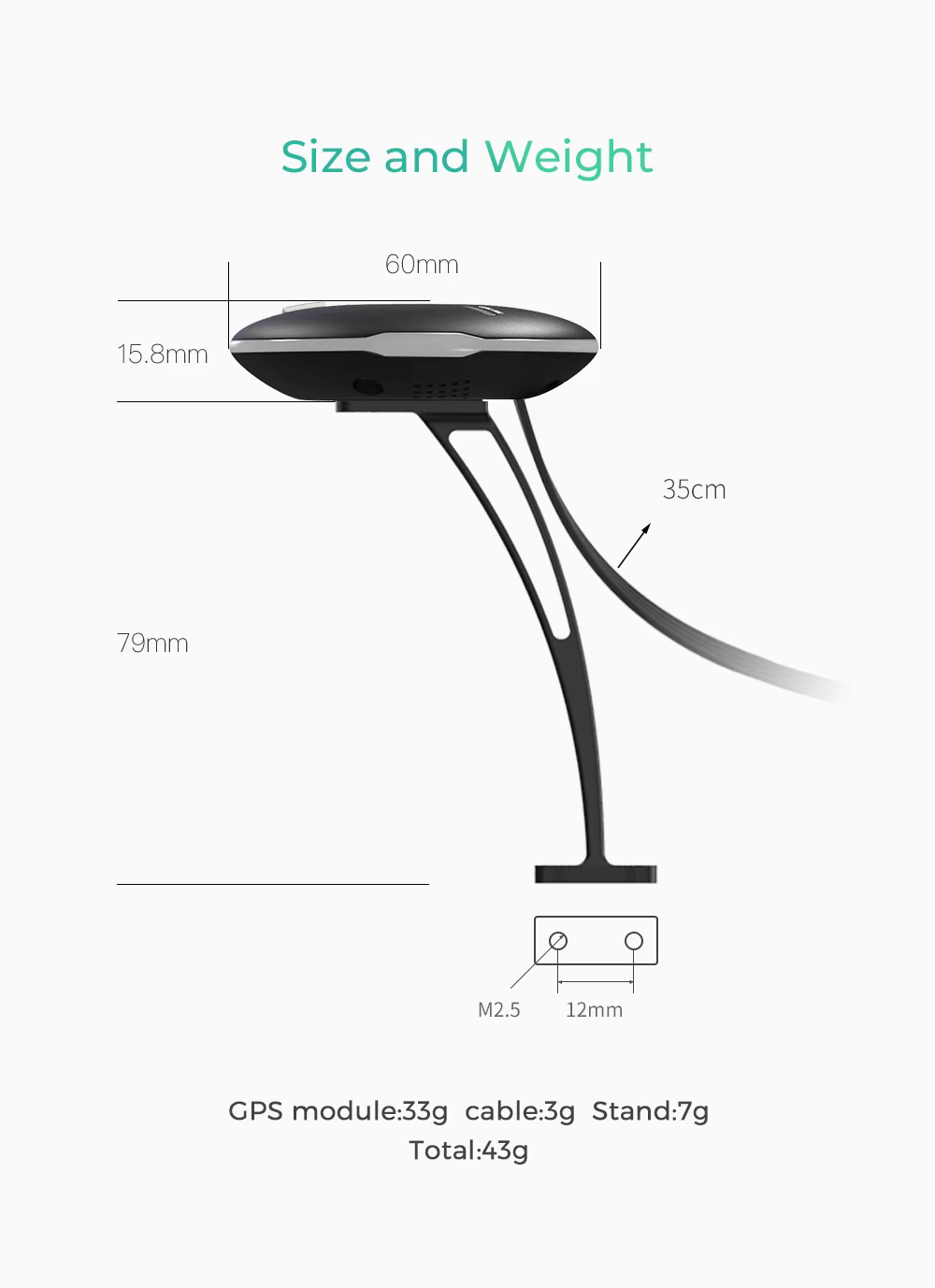

| Size | 60*60*16MM |
| Weight | 33g |
