Metal 3-Axis Gimbal
7,500৳
8,000৳
Ex Tax: 7,500৳
-6 %
| Product price | 8,000৳ |
| Special price | 7,500৳ |
| Product code | 934 |
| Brand |
|
| Product model | 3-Axis Gimbal |
| Total Reviews |
Based on 0 reviews. - Write a review |
Description

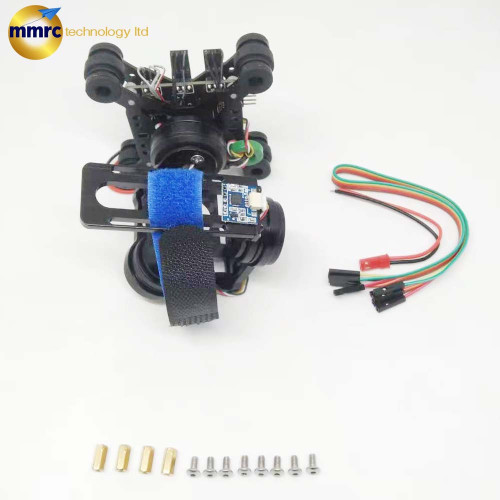

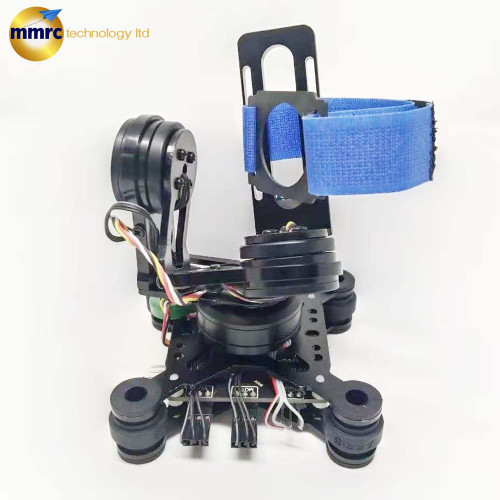

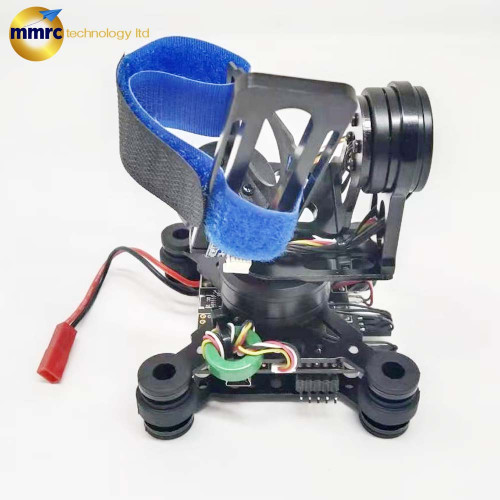

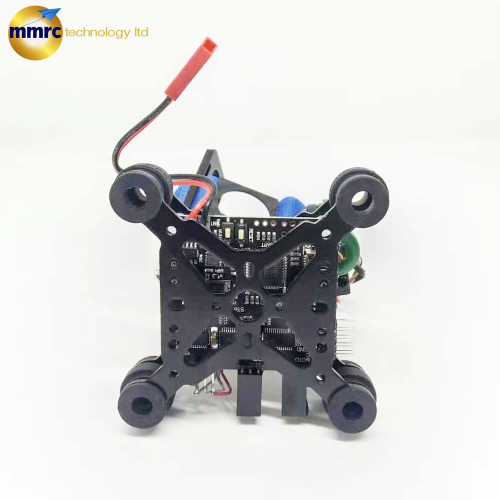

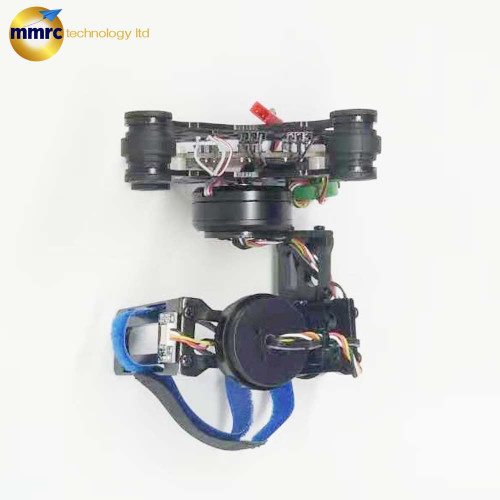

Metal Brushless 3-Axis Gimbal for GOPRO03/GOPR04 Cameras
Specification Motor model: 2206/100T brushless motor: 2, 2804/100T brushless motor: 1 Driver board: STORM32BGC Firmware version: o323bgc-release-v070 Hardware version: V130 Working voltage: 3-4S (11.1-16.8V) Working current: 350mA Joystick control angle: PITCH: -25 degrees + 25 degrees / ROLL: -25 degrees + 25 degrees / YAW: -90 degrees + 90 degrees. Switch Control Mode: Lock/Follow Size: 80*80*100mm(L*W*H) Weight: 180g Scope of application: GOPRO series compatible cameras Power Connectors: JST and HX (how to install) 1. Remove the shock-absorbing ball and open the top mounting plate 2. Screw the mounting plate to the lower part of the aircraft 3. Install the shock-absorbing ball 4. Install the camera and fasten the camera with a strap Instructions for use After installing the camera (be sure to install the camera, otherwise it will keep shaking), stabilize the gimbal for about 20 seconds after powering on (do not shake the gimbal, keep the gimbal hanging, and leave the ground), after hearing a sound, it can be used normally Can control pitch via receiver or other separate PWM channel Can set follow mode or lock mode Angle mode or speed mode can be set
-8 %

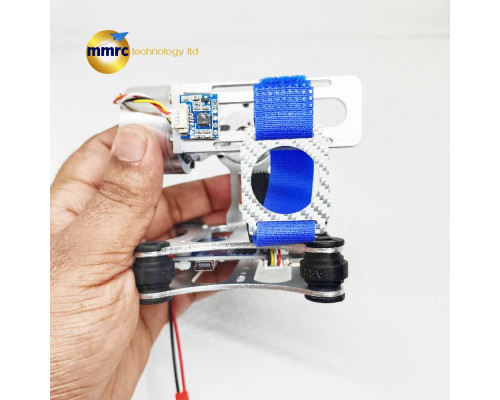

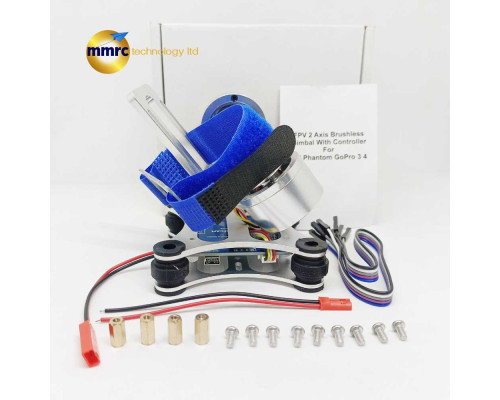

FPV 2AXIS BROUSHLESS GIMBAL WITH CONTROLLER FOR DJI PHANTOM GOPRO 3 4
Product Description
Specification：
Color : Silver
Weight: Approx 239g
S..
5,500৳ 6,000৳
Ex Tax:5,500৳
