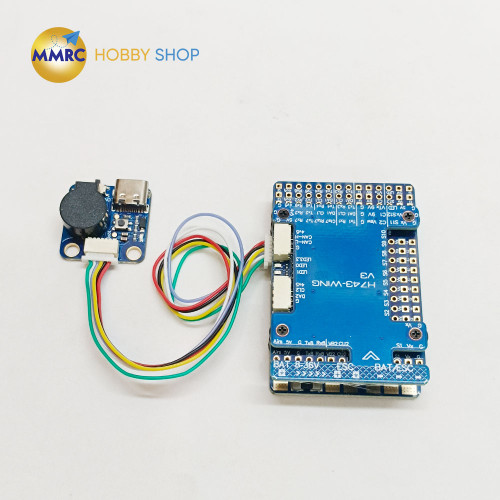

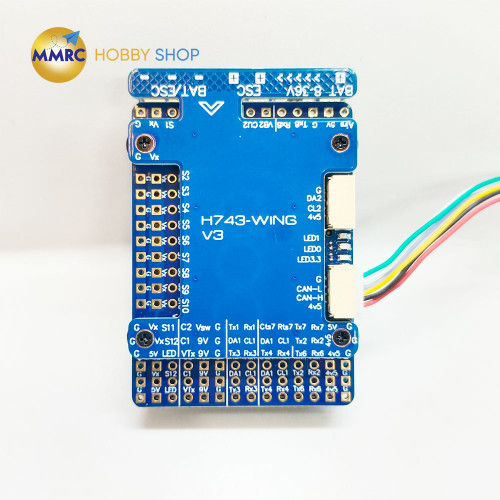

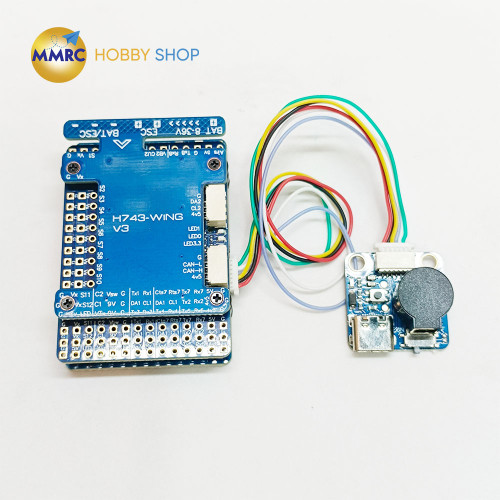

MATEKSYS H743-WING V3 Flight Controller Built-in OSD Baro 3-8S PWM Outputs for RC Airplane Fixed-Wing


Specifications

    MCU: STM32H7A3RIT6, 280MHz Cortex-M7, 1.4MB RAM, 2MB Flash
    IMU: ICM42688P
    Baro: SPL06-001
    OSD: AT7456E
    Blackbox: MicroSD socket
    I2C digital power monitor

    6x Uarts (1,2,3,4, 5, 6) with built-in inversion.
    11x PWM outputs
    1x I2C
    1x CAN
    4x ADC (VBAT, Current, VB2, Cur2)
    3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
    USB/Beep Extender with Type-C(USB2.0)
    2x JST-GH1.25_4pin connector for CAN and I2C

    9V/12V output ON/OFF switchable

    Digital video OSD is supported by any spare UART

Regulators

    Vbat Input: 9~30V (3~6S LiPo)
    BEC 5V/4v5: 2.5A cont. /3A peak
    BEC 9V/12V: 2A cont. /3A peak
    BEC Vx: 8A cont. /12A Peak,  output 5V Default, 6V or 7.2V option.
    LDO 3.3V: Max.200mA

I2C digital power monitor

    No calibration required.
    Current sensing resistor: 0.00025 ohm
    Load current on current sensing resistor:  100A(Continuous),  164A(Burst)
    Voltage accuracy: ± 0.1%
    Current accuracy: ± 2%
    INA2xx I2C address:  0x45 (69)

    Parameters
        BATT_MONITOR  ->21 (INA2xx)
        BATT_SHUNT   -> 0.00025
        BATT_MAX_AMPS  -> 164
        BATT_I2C_BUS   -> 0 default
        BATT_I2C_ADDR -> 0 default (or 69)

FC Firmware

    ArduPilot: MatekH7A3(4.6.x), MatekH7A3-Wing (4.7.x or newer)

Physical

    Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
    Dimensions: 54 x 36 x 13 mm
    Weight: 30g with USB extender

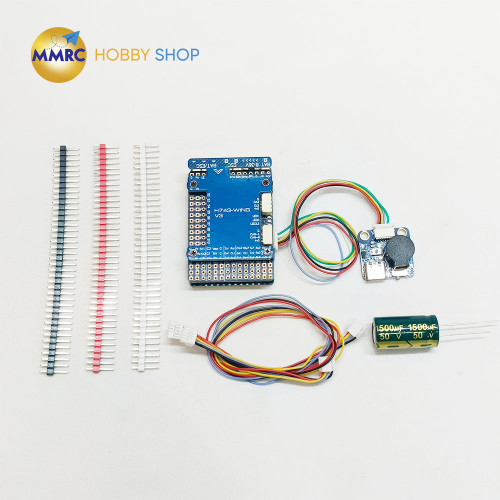

Including

    1x H7A3-WING
    1x USB(Type-C)/Beep (Passive buzzer) Extender with 6pin cable
    1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
    2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
    1x Rubycon ZLH 35V 470uF capacitor
    Dupont 2.54 pins  (Board is shipped unsoldered)
