CUAV X7 Plus Pixhawk Open Source Flight Controller
0৳
Ex Tax: 0৳
-500x500.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
-500x500.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
-500x500.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
-500x500.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
Pre-Order
-100x60h.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
-100x60h.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
-100x60h.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
-100x60h.jpg "CUAV X7 Plus Pixhawk Open Source Flight Controller")
| Product price | 0৳ |
| Product code | 1304 |
| Brand |
|
| Product model | X7 Plus |
| Total Reviews |
Based on 0 reviews. - Write a review |
Description

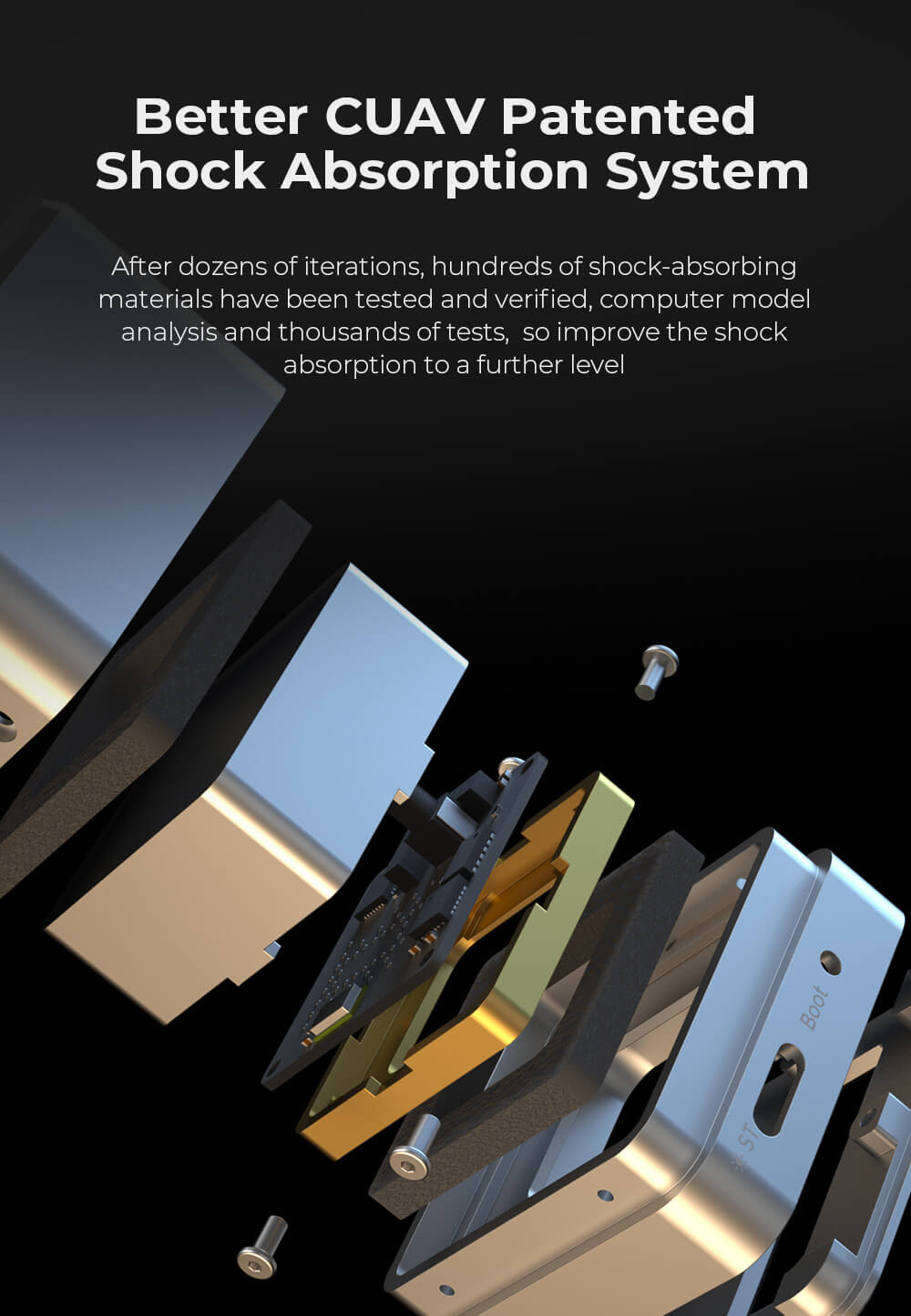

- Built-in vibration damping, adaptable to various harsh operating environments.

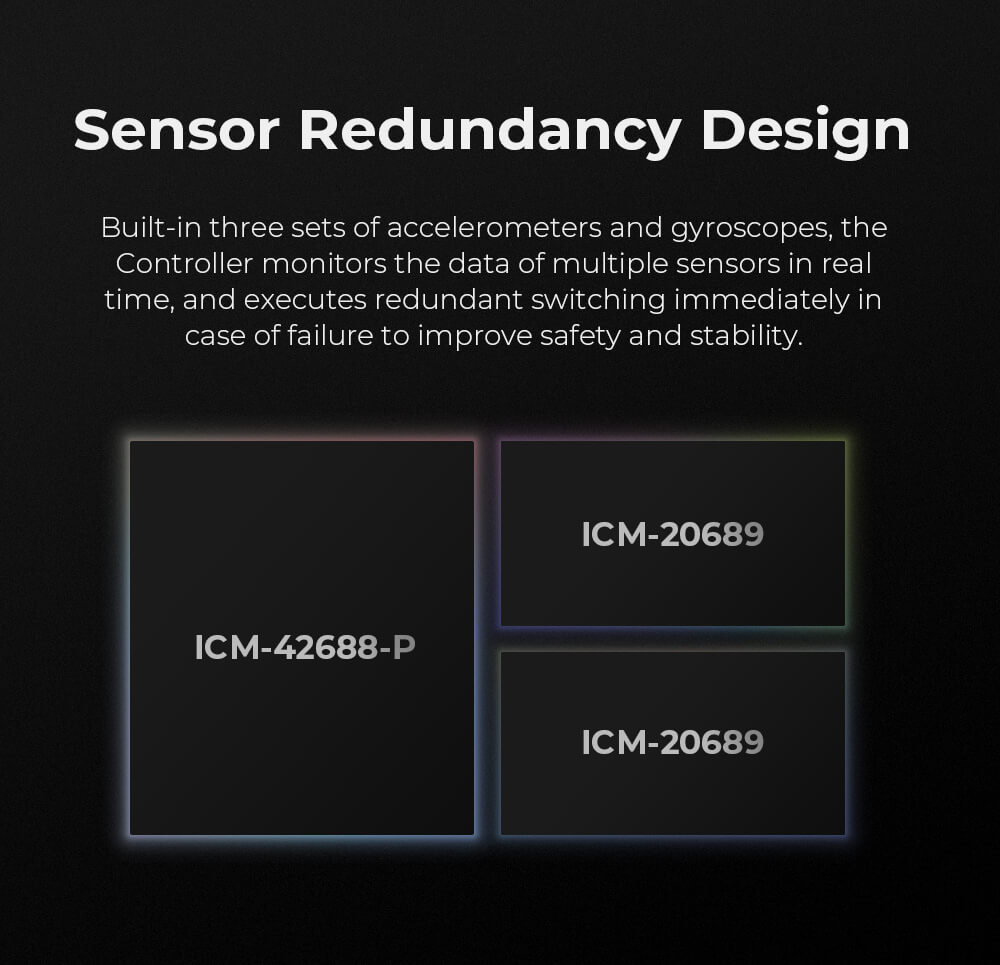

- Equipped with triple redundant IMU groups supporting intelligent failover.
- Integrated temperature compensation ensures optimal IMU performance.
- Compatible with CAN bus current meters.
- Modular design with customizable carrier boards.
Main Parameter | |

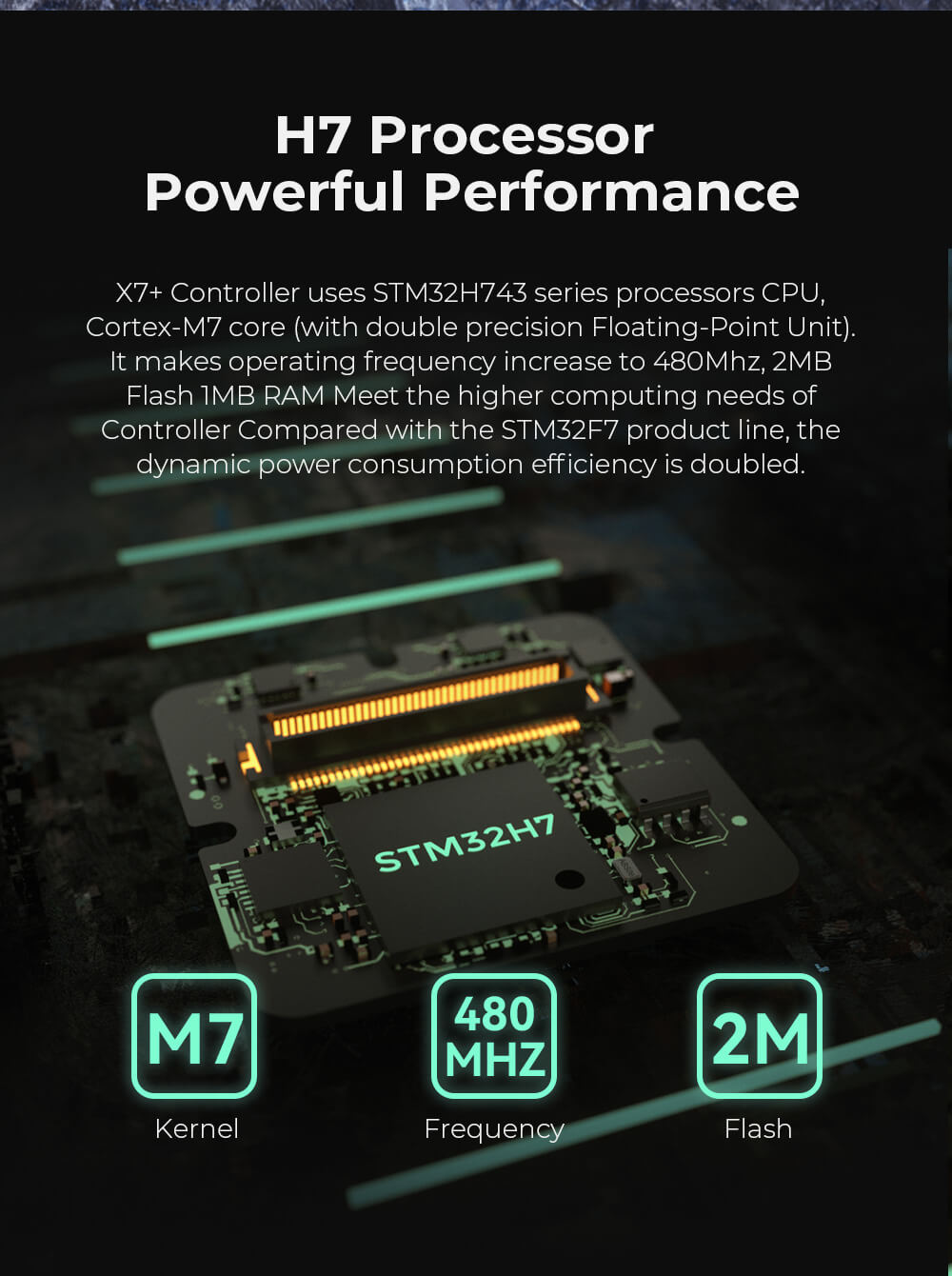

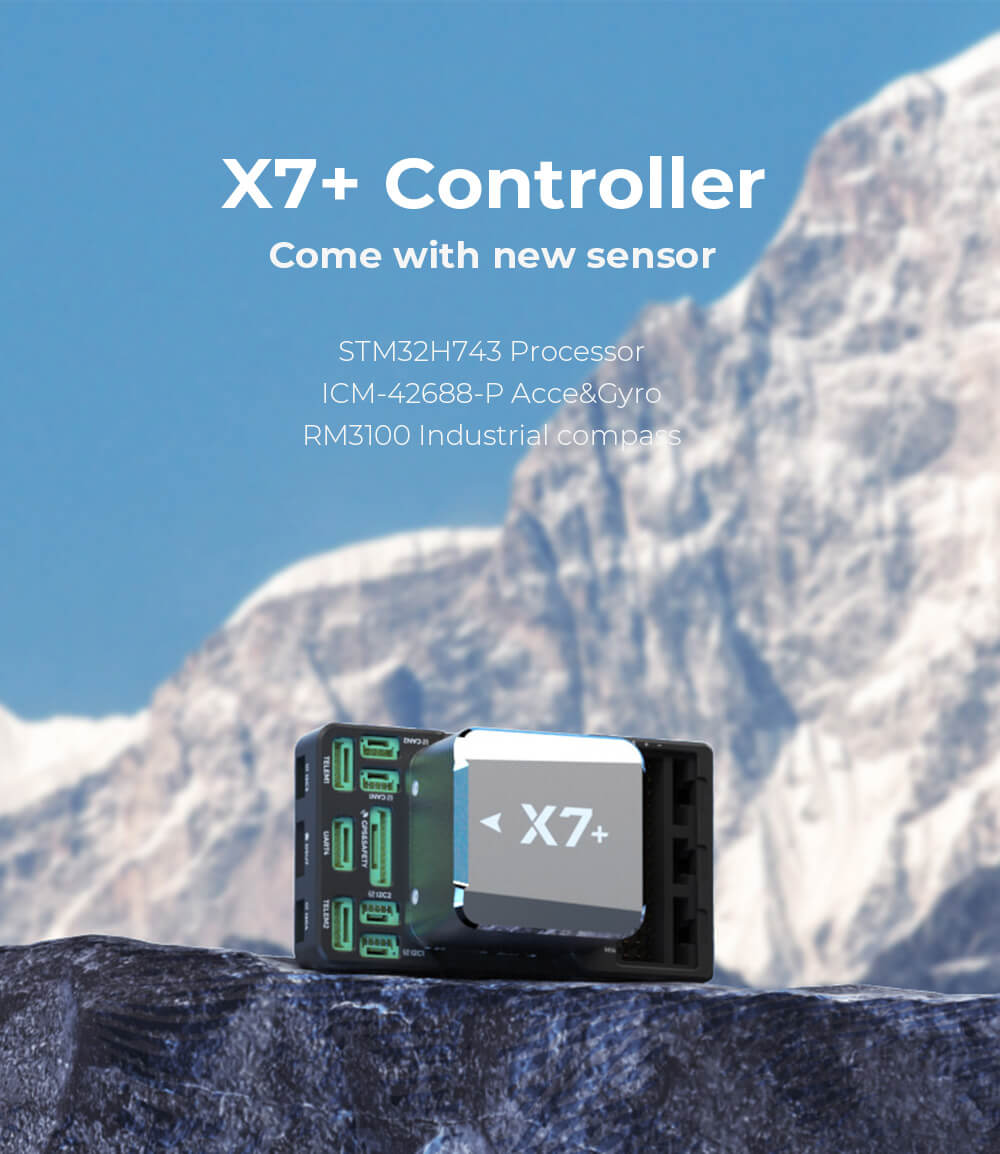

Processor | STM32H743(Arm Cortex -M7,480MHz, 2MB FLASH, 1MB RAM) |
Sensors | |

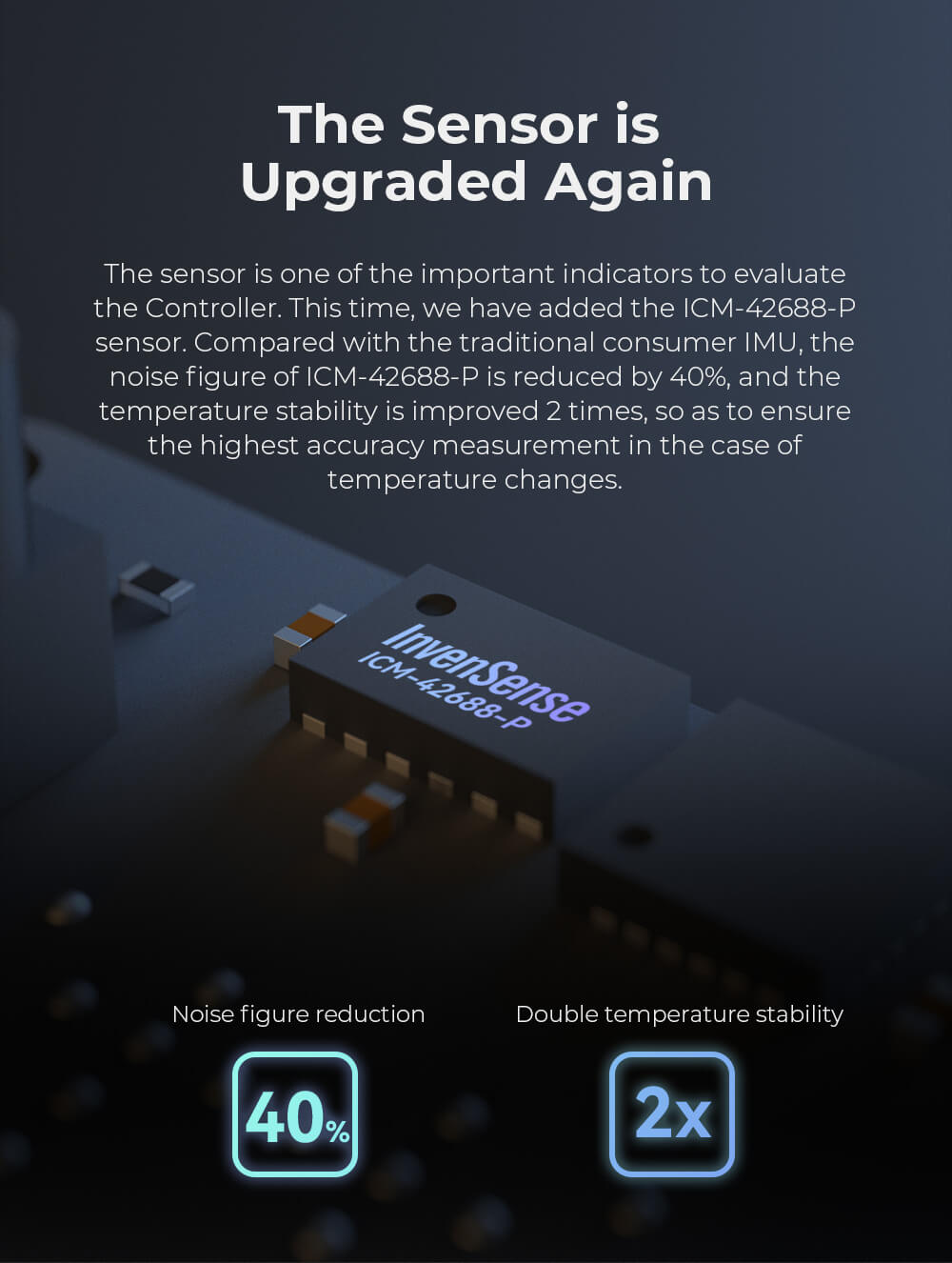

Accelerometer | ICM-42688-P / ICM-20689 / ICM-20689 |
Gyroscope | ICM-42688-P / ICM-20689 / ICM-20689 |
Compass | RM3100 |
Barometer | MS5611 *2 |

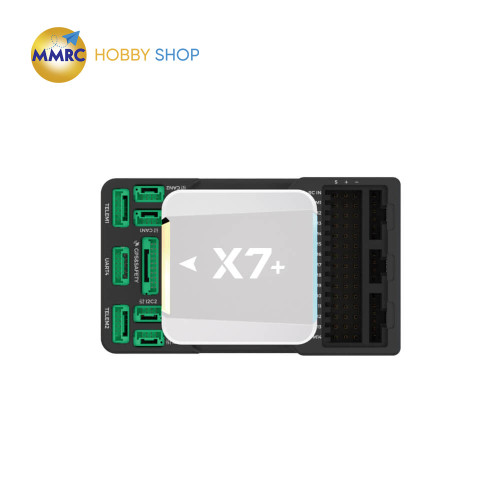

Interfaces | |
UART | 5 |
I2C | 6 (2 interfaces are integrated in GPS&SAFETY&UART4) |
PWM OUT | 14 ( M1~M12 Support DSHOT protocol) |
RC IN | 1 (Support PPM SBUS DSM) |
RSSI | PWM or 3.3V analog voltage |
CAN | 2 |
Power IN | 2 (Power A for ADC protocol, Power C for CAN protocol) |
Safety Switch | 1 |
GPS | 2 |
ADC | 1 |
DEBUG | 1 |
JATG | 1 |
USB | 1 |
Rated Voltage | 4.5 ~ 5.5 V |
USB Voltage | 4.75 ~ 5.25 V |
Servo Voltage | 0 ~ 10 V |
Working Temp | -20 ~ 85 ℃ |
Humidity | 5% ~ 95%（Does not condense） |

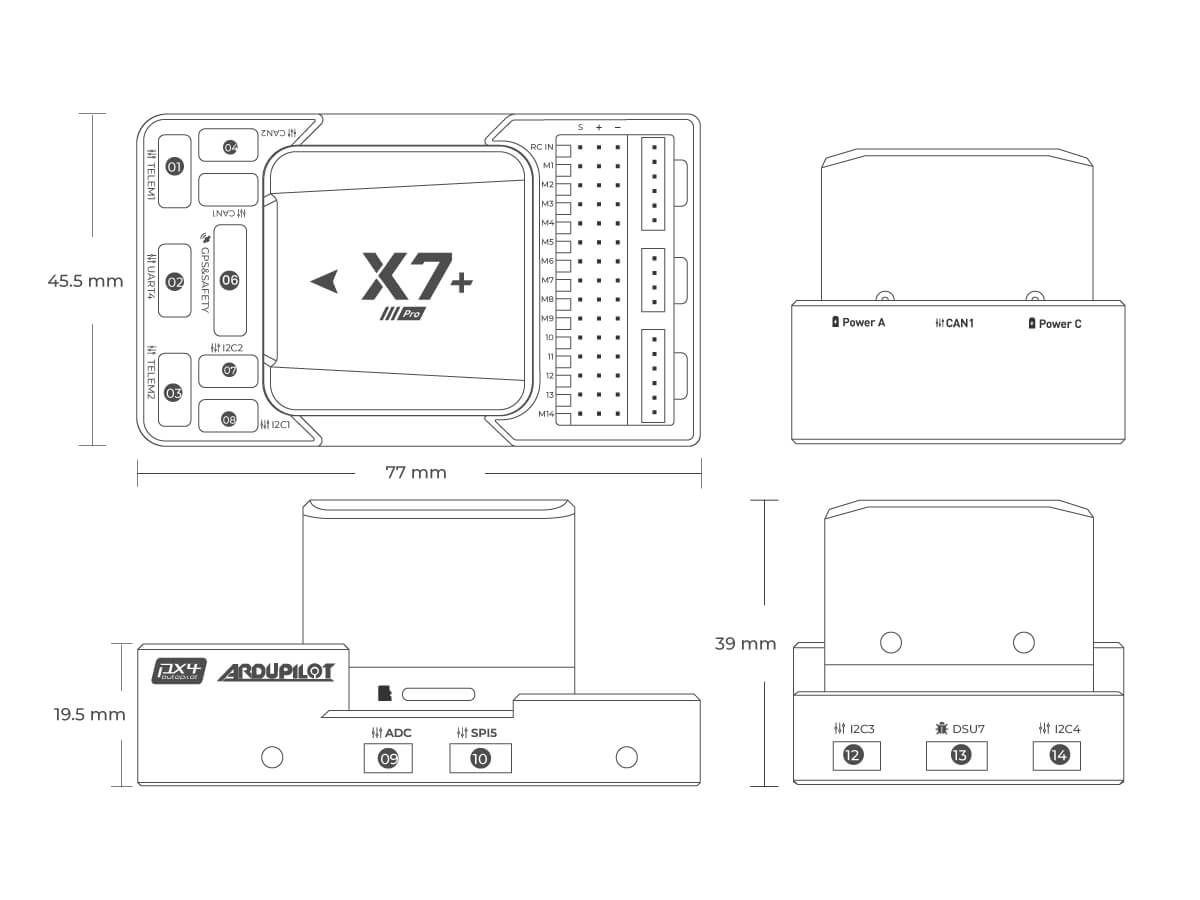

Size | 77.0 × 45.5 × 39.0mm |
Weight | 101g |
